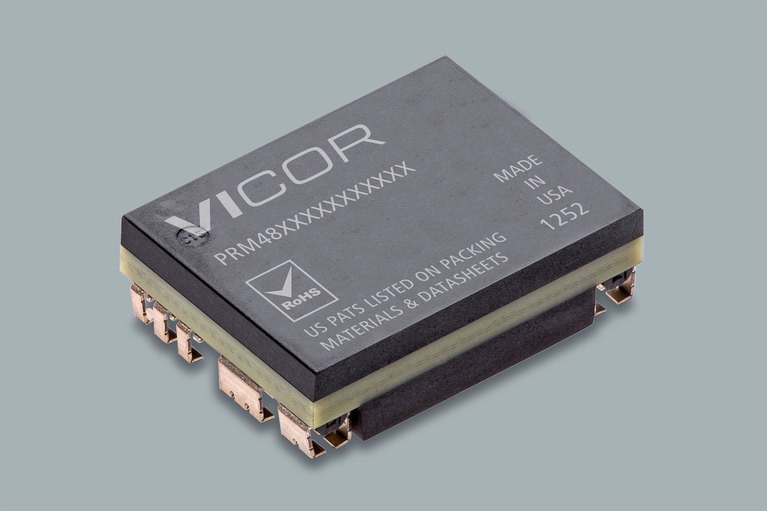

PRM pre- and post-transformation regulators
Input: 48V (36 – 75V)
Output: 48V (5 – 55V)
Power: Up to 600W
Efficiency: Up to 97%
As small as 22.0 x 16.5 x 6.73mm

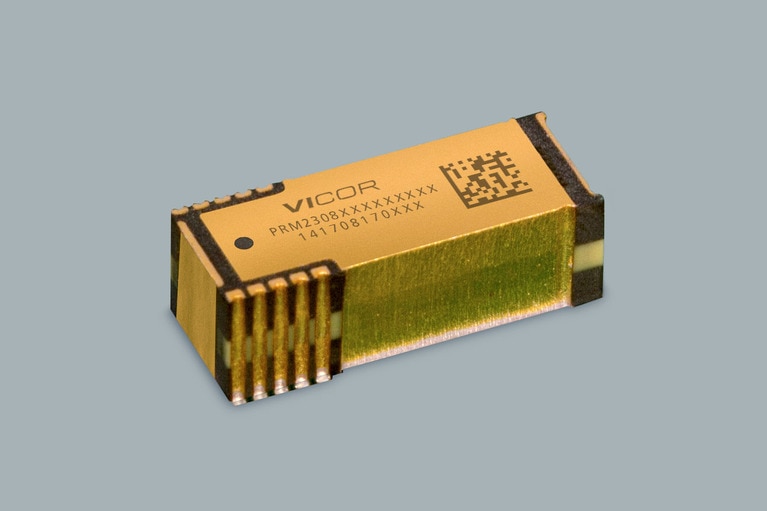

Input: 8 – 60V
Output: 10 – 54V
Power: Up to 150W continuous
Efficiency: Over 98%
10.5 x 14.5 x 3.05mm
ZVS high-efficiency PRM regulators
Input: 54V (38 – 60V)
Output: 26 – 52.5V adjustable
Power: Up to 350W
Efficiency: Up to 97.25%
Input: 9 – 420V
Output: 3.3, 5, 12, 13.8, 15, 24, 28, 36, 48V
Power: Up to 1300W
Efficiency: Up to 96%
As small as 24.8 x 22.8 x 7.21mm

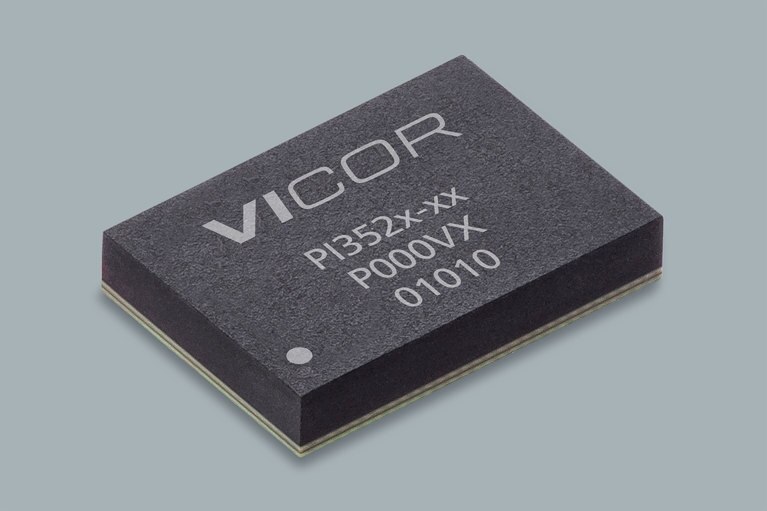

Input: 36 – 60V
Output: 6.5 – 14V
Current: Up to 9A
As small as 8.0 x 7.0 x 0.85mm
Inputs: 12V (8 – 18V), 24V (8 – 42V), 48V (30 – 60V)
Output: 2.2 – 16V
Current: Up to 22A
Peak efficiency: Up to 98%
As small as 10.0 x 10.0 x 2.56mm
Input: 800 – 48V
Output: 2.4 – 55.0V
Current: Up to 150A
Efficiency: Up to 98%
As small as 22.0 x 16.5 x 6.7mm
Input: 0 – 60V
Output: 0 – 55V
Current: Up to 115A
Peak efficiency: Up to 97%
As small as 22.83 x 8.52 x 4.9mm
Output: 24V or 48V
Power: Up to 400W
Peak efficiency: Up to 92%
110.55 x 35.54 x 9.40mm
Related product family pages
(links to a family page)

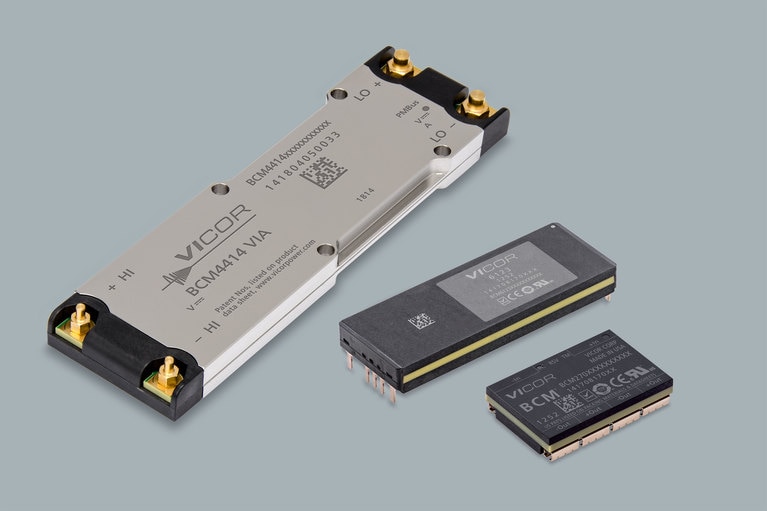

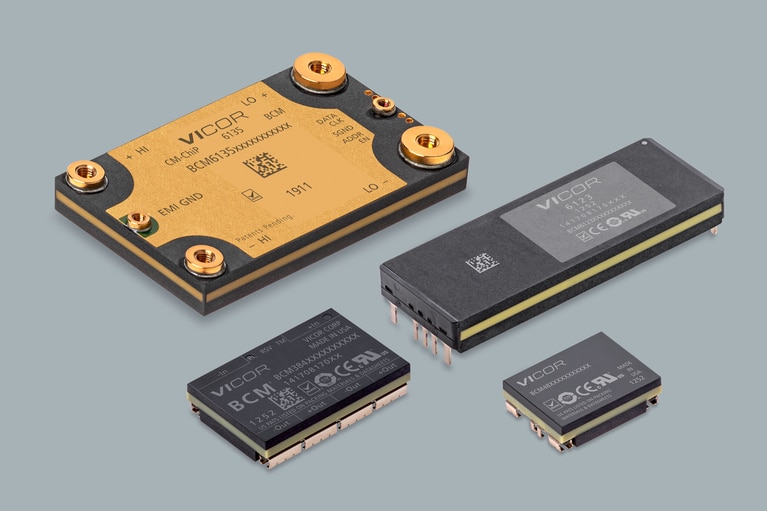

MIL-COTS BCM® bus converter modules
Input: 200 – 400V, 400 – 700V, 500 – 800V
Current: Up to 35A
Efficiency: Up to 98%
As small as 1.28 x 0.86 x 0.26in
BCM4414 fixed ratio DC-DC converter
Input: 260 – 800V
Output: 8.1 – 51.3V
Current: Up to 125A
110.6 x 35.5 x 9.4mm
Input: 270V (180 – 400V)
Output: 28V
Power: Up to1300W
Peak efficiency: 96%
141.4 x 35.5 x 9.4mm
Input: 28V (16 – 50V)
Output: 48V
Power: Up to 320W
Peak efficiency: 93%
38.7 x 22.8 x 7.26 mm
24g
Input: 12, 24 or 48V
Output: 2.2 – 16V
Current: Up to 22A
Peak efficiency: 98%
As small as 10.0 x 10.0 x 2.6mm
Input: 28, 30, 270V
Output: 3.3, 5, 12, 15, 24, 28, 48V
Power: Up to 1300W
Efficiency: Up to 96%
As small as 0.98 x 0.90 x 0.28in
Input: 14 – 50V, 38 – 55V
Output: 1.08 – 50V
Current: Up to 80A
Efficiency: Up to 96.5%
As small as 22.0 x 16.5 x 6.7mm (each)
VITA-62 compliant power converters
Input: 18 – 42V, 18 – 45V, 220 – 320V
Output: 28, 12, 5, 3.3, -12V
Power: 3U 750W, 6U 1000W
Full power to 85°C (at card edge)
As small as 3.9 x 6.6 x 0.95in

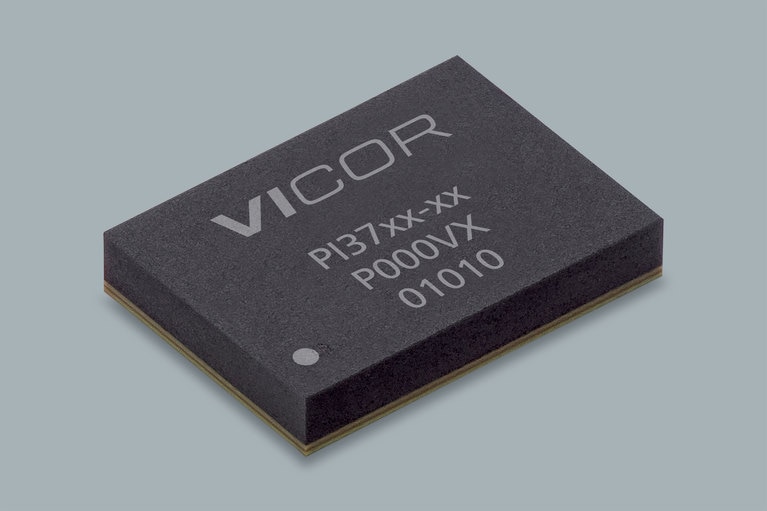

MIL-COTS ZVS buck-boost regulators
Input: 8 – 60V
Output: 10 – 50V
Power: Up to 150W continuous
Efficiency: Up to 96%
10.0 x 14.0 x 2.3mm
NBM fixed ratio DC-DC converter
Input: 36 – 60V
Output: 7.2 – 15.3V
Power: Up to 2400W
Efficiency: Over 98%
As small as: 23 x 17 x 5.2mm
Input: 160 – 420V
Output: 2.97 – 30.8V
Power: Up to 600W
47.91 x 22.80 x 7.21mm
Input: 400V (260 – 410V)
Output: 8.1 – 12.8 V, 16.3 – 25.6, 32.5 – 51.2
Current: Up to 150A
Efficiency: Up to 98%
25.14 x 61.0 x 7.26mm
Input: 260 – 410V
Output: 32.5 – 51.3V
Current: Up to 65A
Peak efficiency: 98.6%
61 x 35 x 7.4mm
Input: 9 – 420V
Output: 3.3, 5, 12, 13.8, 15, 24, 28, 36, 48V
Power: Up to 1300W
Efficiency: Up to 96%
As small as 24.8 x 22.8 x 7.2mm
Input: 48V (36 – 75V)
Output: 48V (5 – 55V)
Power: Up to 600W
Efficiency: Up to 97%
As small as 22.0 x 16.5 x 6.73mm
Use this for part number:
PRM48AF480T400A00
Input: 36 – 75V
Output: 20 – 55V
Current: Up to 8.33A
32.5 x 22.0 x 6.73mm
Use this for part number:
BCM4414VH0E5035T02
High-voltage BCM4414 bus converter
Input: 500 – 800V
Output: 31.3 – 50.0V
Current: Up to 35A
110.6 x 35.5 x 9.4mm
Use this for part number:
DCM3623T75H17C2T00
DCM3623T75H17C2T00
Input: 48V (36 – 75V)
Output: 15V (9.0 – 16.5V)
Power: Up to 320W
38.72 x 22.8 x 7.21mm
VTM48EF060T040A00

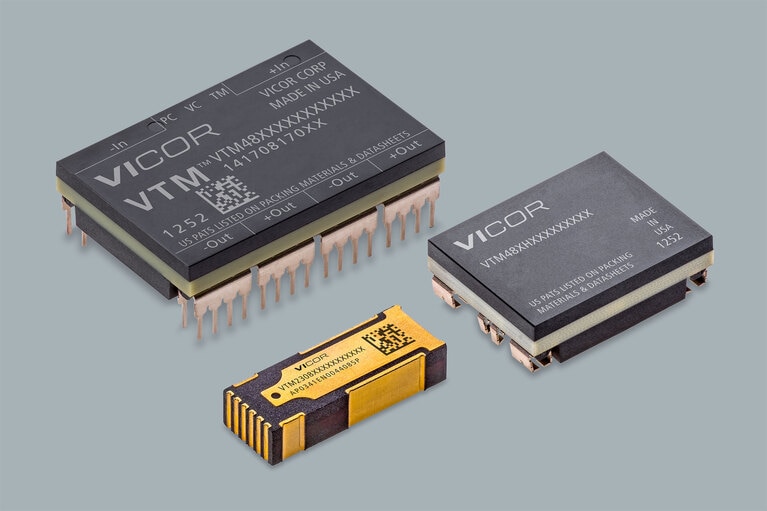

VTM current multiplier
Input: 48V (26 – 55V)
Output: 6V (3.25 – 6.87V)
Current: Up to 40A
32.5 x 22.0 x 6.31mm
PRM48AF480T400A00 400W buck-boost regulator
PRM48AH480T200A00 200W buck-boost regulator
Input: 48V (36 – 75V)
Output: 48V (20 – 55V)
32.5 x 22.0 x 6.73mm
Input: 48V (36 – 60V)
Output: 12V (2.2 – 14V)
Current: Up to 9A
10.0 x 10.0 x 2.56mm
Low-voltage DCM DC-DC converter
Input: 16 – 50V
Output: 16.8 – 30.8V
Power: Up to 320W
85.93 x 35.54 x 9.4mm
Use this for part number:
PRM48BH480T250A00
Input: 48V (38 – 55V)
Output: 20 – 55V
Current: Up to 5.21A
22.0 x 16.5 x 6.73mm
Use this for part number:
VTM48EF020T080A00
Input: 48V (26 – 55V)
Output: 1.0 – 2.29V
Current: Up to 80A
32.5 x 22.0 x 6.31mm
Use this for part number:
PRM48AF480T400A00
Input: 48V (36 – 75V)
Output: 48V (20 – 55V)
Power: Up to 400W
32.5 x 22 x 6.73mm
Use this for part number:
BCM4414VG0F4440C02
High Voltage BCM4414 bus converter
Input: 544V (400 – 700V)
Output: 34V (25 – 43.8V)
Current: Up to 40A
110.6 x 35.5 x 9.4mm
Use this for part number:
DCM5614VD0H36K3T01
Input: 270V (180 – 400V)
Output: 28V (22 – 36V)
Power: Up to 1300W
141.43 x 35.54 x 9.40mm
Use this for part number:
DCM3623T75H13C2T00
DCM3623T75H13C2T00
Input: 48V (36 – 75V)
Output: 12V (7.2 – 13.2V)
Power: Up to 320W
38.72 x 22.8 x 7.21mm
Use this for part number:
PRM48BF480T600A00
PRM48BF480T600A00
buck-boost regulator
Input: 45V (38 – 55V)
Output: 48V (5 – 55V)
Power: Up to 600W
32.5 x 22.0 x 6.73mm
Specific product pages
(links to a product page)
Use this for part number:
BCM6123TD1E5135T0R
BCM6123TD1E5135T0R
bus converter
Input: 400V (260 – 410V)
Output: 50V (32.5 – 51.3V)
Current: Up to 35A
63.34 x 22.80 x 7.21mm
Use this for part number:
BCM4414VD1E5135C02
Fixed ratio DC-DC converter
Input: 500 – 800V
Output: 31.3 – 50V
Current: Up to 35A
4.4 x 1.4 x 0.4in
Use this for part number:
DCM3623T75H40C2T00
DCM3623T75H40C2T00
Input: 48V (36 – 75V)
Output: 36V (21.6V – 39.6V)
Power: Up to 320W
38.72 x 22.8 x 7.21mm
Use this for part number:
BCM384P120T800AC0
BCM384P120T800AC0
bus converter
Input: 384V (260 – 410V)
Output: 12V (8.1 – 12.8V)
Current: Up to 68A
61.00 x 25.14 x 7.21mm
Use this for part number:
BCM380P475T1K2A30
BCM380P475T1K2A30
bus converter
Input: 380V (260 – 410V)
Output: 47.5V (32.5 – 51.3V)
Current: Up to 25.7A
63.34 x 22.80 x 7.21mm
Use this for part number:
DCM3717S60E14G5TN0
DCM3717S60E14G5TN0
DC-DC converter
Input: 54V (40 – 60V)
Output: 12.2V (10.0 – 13.5V)
Power: Up to 750W
36.70 x 17.30 x 7.42mm
Use this for part number:
BCM3423xxxxxxxxxxx
BCM3423 bus converter module
Input: 100V (94 – 105V, 120V transient)
Output: 33V (31 – 35V)
Power: 300W
Bus converter ratio: K = 1/3
Typical full load efficiency: 96%
33.5 x 23.1 x 8.0mm
25.9g
50k rad, 35 MeV-cm2/mg
Use this for part number:
PRM2919xxxxxxxxxxx
PRM2919 regulator module
Input: 33V (30 – 36V)
Output: 32V (13.4 – 35V)
Power: 200W
Current: IOUT 8A max
Typical full load efficiency: 96%
29.2 x 19.0 x 8.0mm
18.2g
50k rad, 35 MeV-cm2/mg
Use this for part number:
VTM2919xxxxxxxxxxx
VTM2919 0.8V, 150A voltage transformation module
Input: 13.4 – 35V
Output: 0.42 – 1.1V
Current: 150A
Converter ratio: K = 1/32
Typical full load efficiency: 92%
29.2 x 19.0 x 5.5mm
13.3g
50k rad, 35 MeV-cm2/mg
Use this for part number:
VTM2919xxxxxxxxxxx
VTM2919 3.3V, 50A voltage transformation module
Input: 16 – 32V
Output: 2 – 3.8V
Current: 50A
Converter ratio: K = 1/8
Typical full load efficiency: 94%
29.2 x 19.0 x 5.5mm
11g
50k rad, 35 MeV-cm2/mg
Use this for part number:
BCM6123T60E15A3T0R
BCM6123T60E15A3T0R bus converter
Input: 54V (36 – 60V)
Output: 13.5V (9 – 15V)
Current: Up to 130A
61.00 x 25.14 x 7.21mm
Use this for part number:
PRM48BF480T500A00
PRM48BF480T500A00
buck-boost regulator
Input: 48V (38 – 55V)
Output: 48V (20 – 55V)
Power: 500W
32.5 x 22.0 x 6.73mm
Use this for part number:
VTM48EF240M012A00
VTM48EF240M012A00 current multiplier
Input: 48V (26 – 55V)
Output: 13 – 27.5V
Current: 12.5A
32.5 x 22.0 x 6.31mm
Use this for part number:
VTM48EF120T025A00
VTM48EF120T025A00 current multiplier
Input: 48V (26 – 55V)
Output: 6.5 – 13.8V
Current: 25A
32.5 x 22.0 x 6.31mm

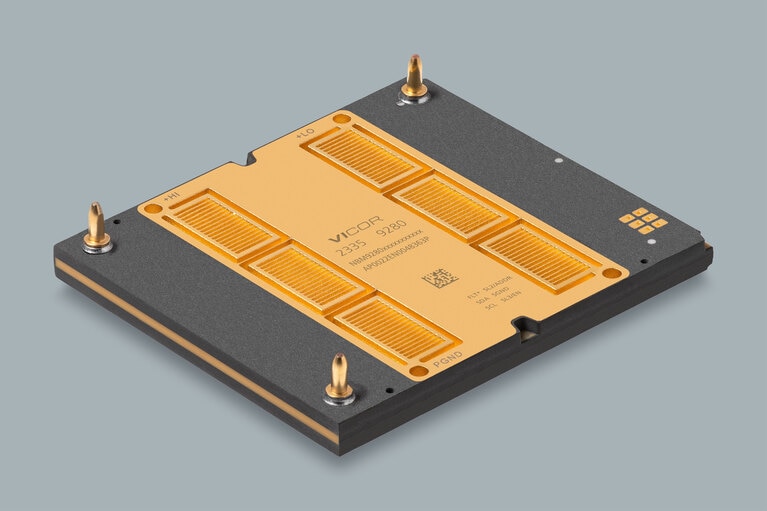

Non-Isolated, fixed-ratio
Input: 400 – 920V
Output: 200 – 460V
Current: Up to 75A
Power: 37kW
Peak efficiency: 99.0%
92.2 x 80.0 x 7.5mm
Isolated converter
Input: 520 – 920V
Output: 32.5 – 57.5V
Current: Up to 80A
Power: 2.5kW
61 x 35 x 7.4mm
Isolated converter
Input: 520 – 920V
Output: 32.5 – 57.5V
Current: Up to 80A
Power: 2.5kW
Efficiency: up to 97.3%
61.3 x 35.4 x 7.4mm
Non-Isolated, regulated
Input: 31 – 58V
Output: 36 – 54V
Power: 2.5kW
Efficiency: up to 99.2%
36.6 x 35.4 x 7.4mm
Non-Isolated, regulated
Input: 35 – 58V
Output: 8 – 16V
Power: 2kW
Efficiency: up to 96.5%
36.6 x 35.4 x 5.2mm
Input: 8 – 36V and 30 – 60V
Output: 1 – 16V
Current: Up to 22A
As small as 7 x 8 x 0.85mm
Input: 500 – 800V
Output: 31.3 – 50.0V
Current: Up to 35A
110.6 x 35.5 x 9.4mm
UPCOMING
Non-isolated
Input: 200 - 460V (boost) or 400 - 920V (buck)
Output: 400 - 920V (boost) or 200 - 920V (buck)
Current Up to 75A
Peak efficiency: 99.0%
92 x 80 x 7.4mm
Non-Isolated/regulated
Input: 35 – 58V
Output: 8 – 16V
Power: 2kW
Peak efficiency: 96.5%
36.7 x 35.4 x 5.2mm
UPCOMING
Non-isolated
Input: 40 – 60V
Output: 10 – 15V
Power: 1kW
Peak efficiency: 97.9%
23 x 17 x 5.2mm
Non-isolated/regulated
Input: 31 – 58V
Output: 36 – 54V
Power: 2.5kW
Peak efficiency: 99.2%
36.6 x 35.4 x 7.4mm
Isolated
Input: 260 – 410V
Output: 32.5 – 51.3V
Current: Up to 65A
Peak efficiency: 97.9%
61 x 35 x 7.4mm
Isolated
Input: 520 – 920V
Output: 32.5 – 57.5V
Current: Up to 80A
Peak efficiency: 97.3%
61 x 35 x 7.4mm
Input: 260 – 410V
Output: 32.5 – 51.3V
Current: Up to 25.7A
63.3 x 22.8 x 7.2mm
NBM2317S60D1565T0R fixed ratio DC-DC converter
Input: 40 – 60V
Output: 10 – 15V
Current: Up to 65A
22.8 x 17.3 x 5.2mm
